KEN1 Safetynet Locator Module

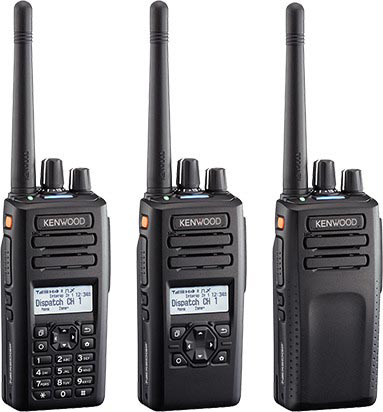

The Kenwood NX3000 range of DMR and NEXEDGE digital radios can now be fitted with a KEN1 module, enabling seamless location data transmission to the SafetyNet Locator system.

Quick Overview

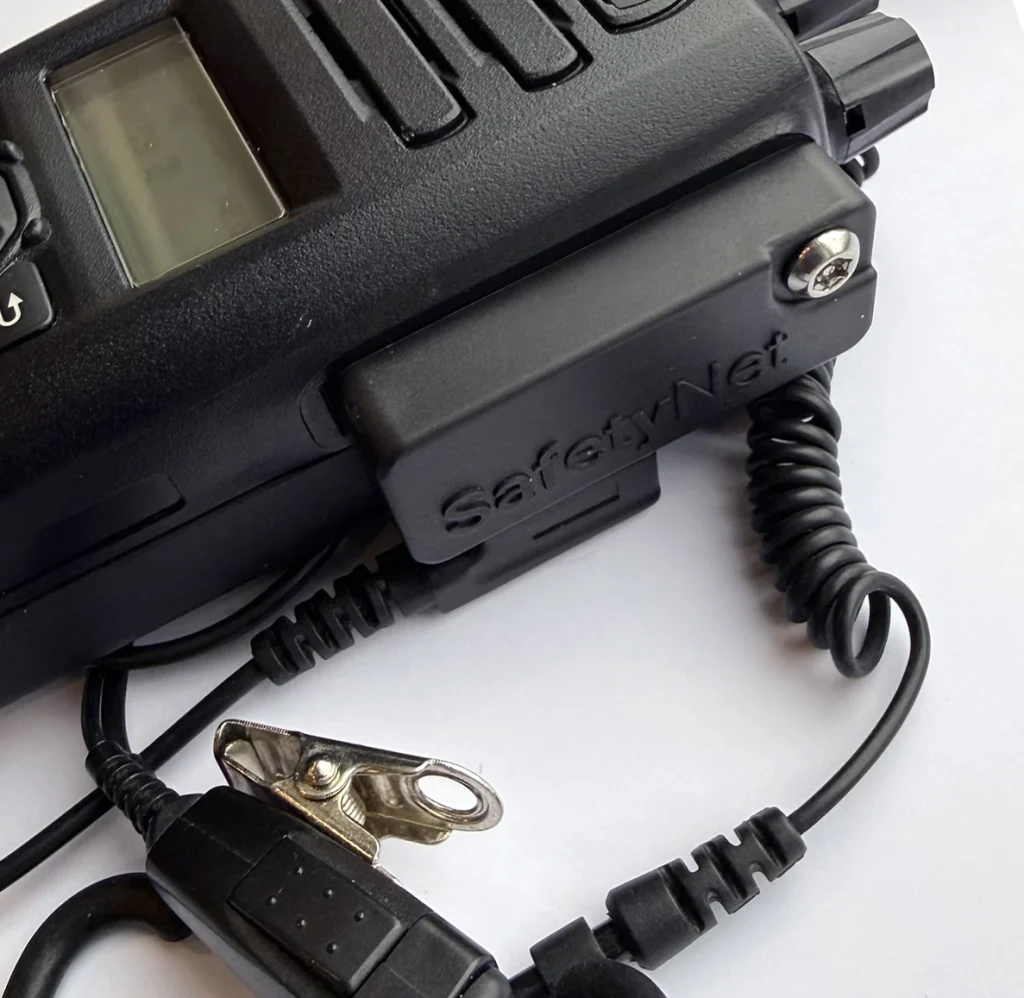

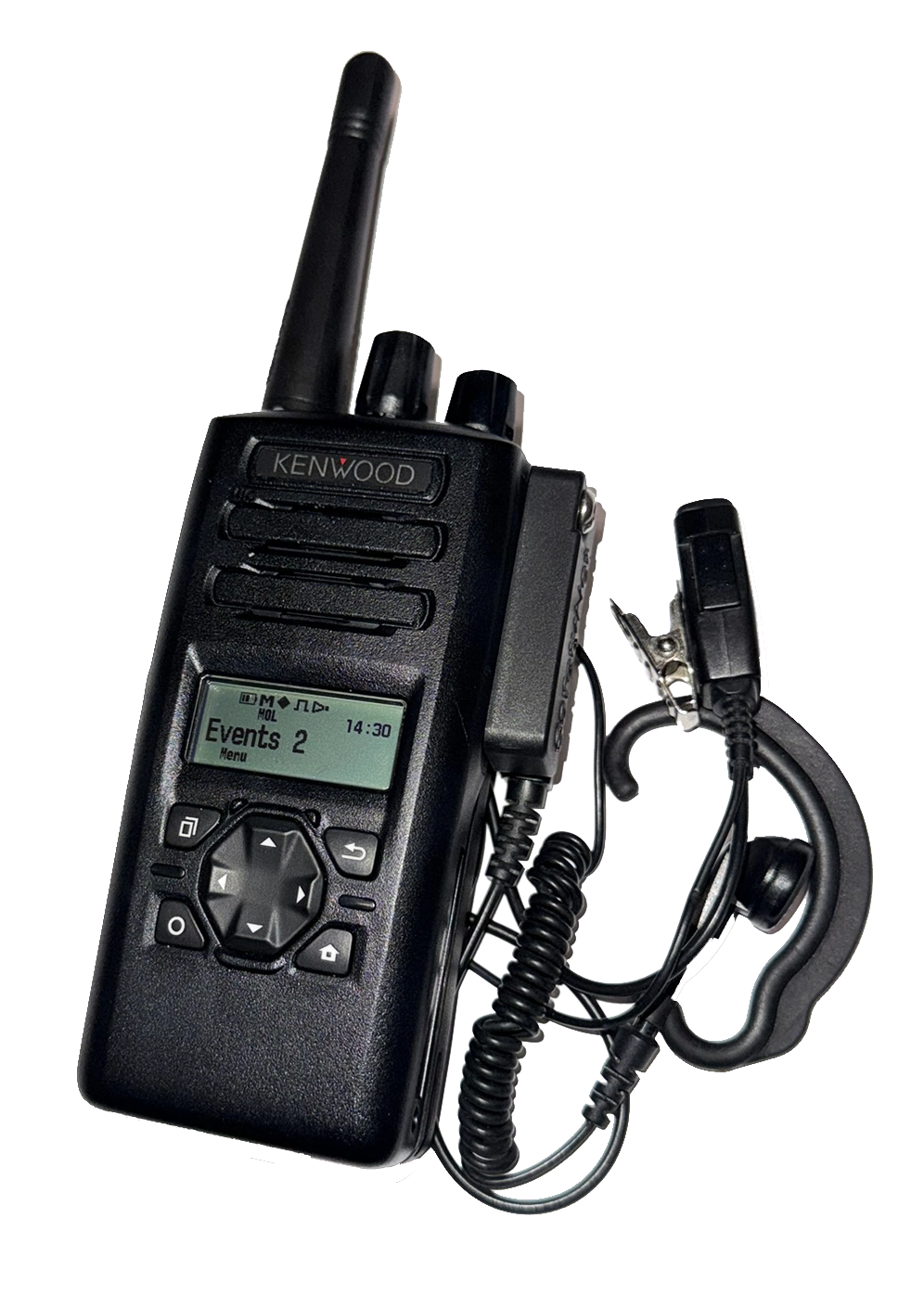

This professional-grade module attaches externally via the accessory side connector and provides connectivity to standard Kenwood accessories using the dual jack plug range of products. It provides a robust, secure, and interference-resistant alternative to conventional Bluetooth-based location solutions.

Key Features:

Fits directly onto the accessory connector – no modification required
Sealed to IP54
Secure and seamless transmission of location data from fixed beacons
Supports both tracking and polled modes
External mounting for improved reception and performance
Dual-jack design enables lower-cost peripheral compatibility
Programmable for future feature upgrades
Built on proven technology

Indoor & Outdoor Positioning

The KEN1 module is compatible with Kenwood DMR and NEXEDGE radios equipped with GPS (MD) options, enabling comprehensive indoor and outdoor tracking. It receives signals from fixed-location beacons and relays this data over the radio network to SafetyNet Locator for real-time personnel monitoring.

Originally developed for Liverpool Museums, the KEN1 offers a more reliable and professional alternative to mass-market Bluetooth beacons, which are vulnerable to interference and jamming in crowded RF environments.

Specifications

Modes of operation:

Tracking:
Module updates on receipt of a new beacon signal

Polled:
Module updates only when requested by SafetyNet

Programming:
PMR Programming Pod and Test unit

Weight: 15g

Dimensions:
50(l) x 20(w) x 22(h) mm (to top of locking mechanism)

Construction:
ABS plastic housing
IP54 sealed with positioning tab
Screw-locking mechanism

Receiver type:
IEEE802.15.4

Receiver frequency:
2.4–2.5 GHz

Current consumption:
20mA receive, 2.6uA standby

Compliance:
ETSI EN 300 328 v1.7.11
CFR 47 FCC Part 15

Trusted by organisations that can’t compromise

Quality Systems

We are proud to hold ISO 14001:2015 and ISO 9001 for the design, manufacture and assembly, supply, installation, repair and maintenance of radio communication components, software and systems

PMR Products has considerable experience in designing, installing and maintaining communication solutions. To discuss your requirements please get in touch
